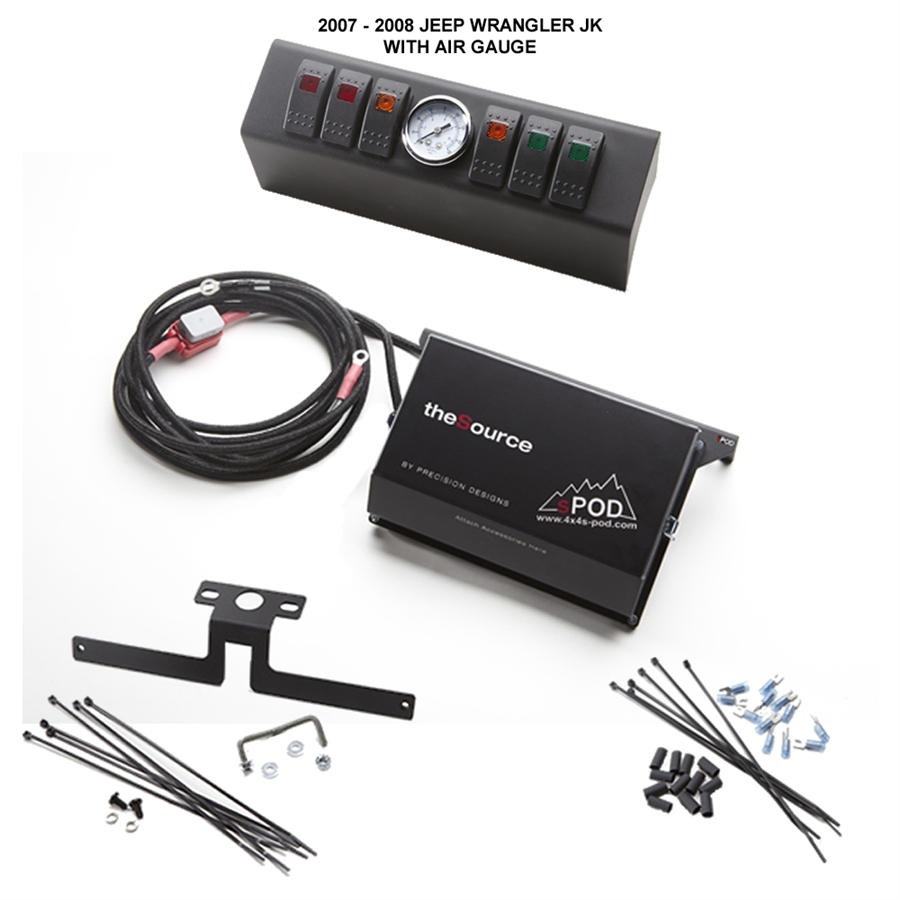

sPOD 07-08 JK model 6 Switch System with double LED light Contura rocker switches & Source System w/ Air Gauge
Each system includes the following:
- All required mounting brackets and hardware.
- System will come pre-wired ready to install.
Included:
Switch panel, six dual LED light Contura switches (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch. Complete Air Gauge kit 0-200 psi Air Gauge w/Quick Release Camozzi fittings and 10' of high pressure connection line.All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
All wires are wrapped in high temp abrasion resistant nylon braided sleeving.

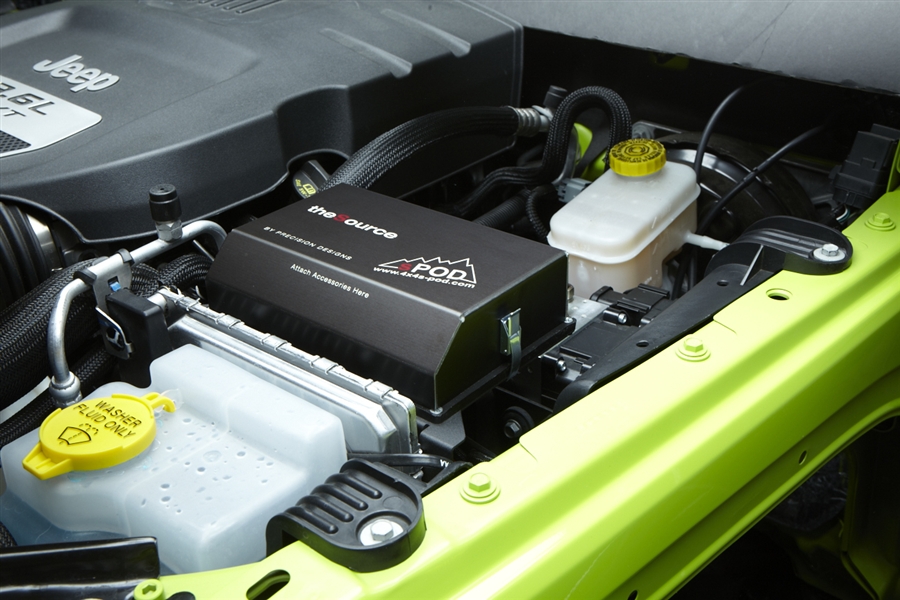

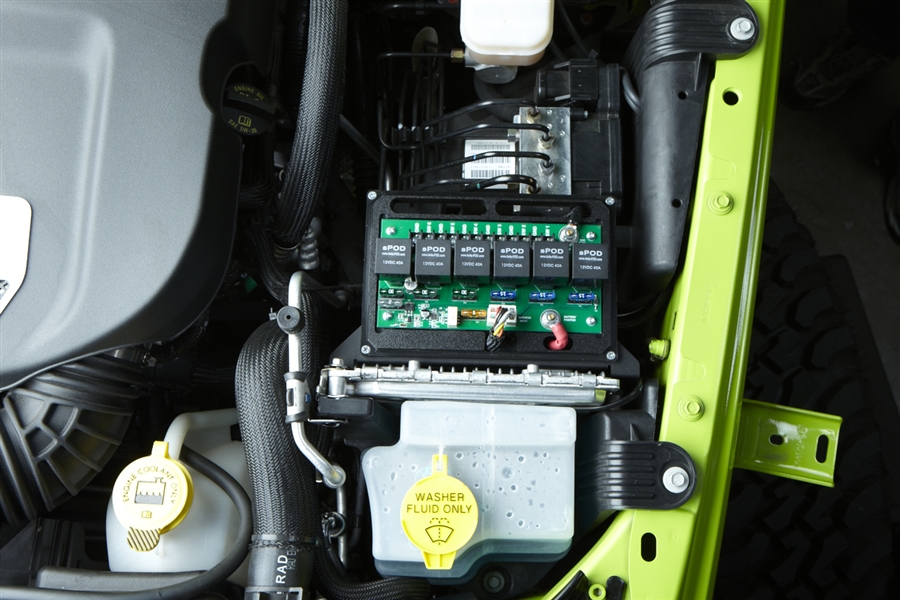

The Source 6 Circuit power distribution system includes:
- 12 position terminal block for accessory attachment
- 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
- 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
- 6 Diodes to protect sensitive accessories such as LED lights from "field collapse"
- Inline 50amp manual resetting circuit breaker
- 8 gauge power leads with crimped and soldered terminal for connection to the battery
- Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 10.6VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on!!!
- Fuse for LVCO which can be removed to bypass the LVCO
- Mounting bracket for Jeep Wranglers

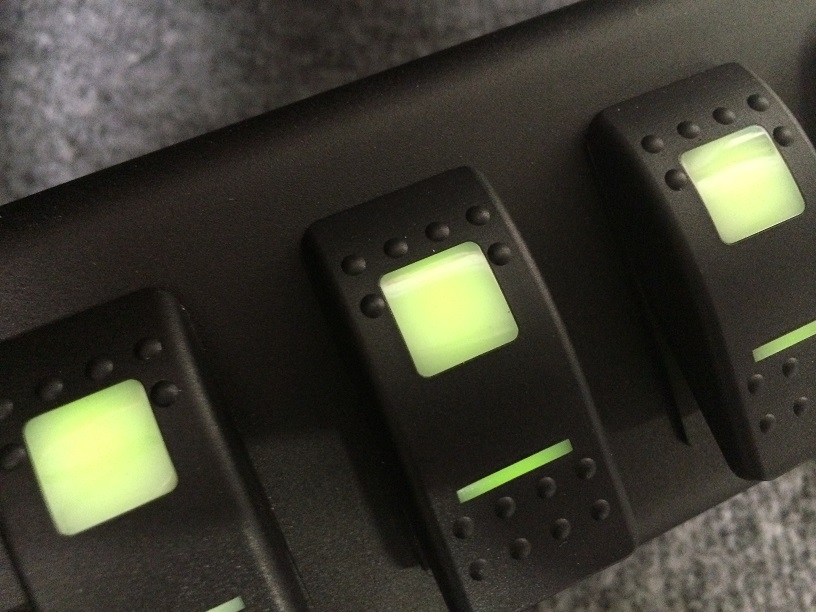

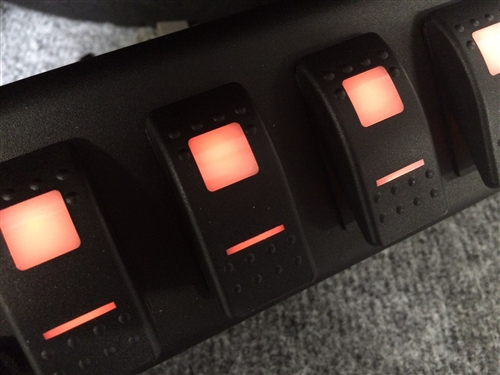

Highlights of the dual LED option:
- Gives the operator a choice of having a night lighted switch.
- The lower lighted portion of the switch is fully controlled by the operator.
- Prevents from tapping into the OEM electrics.
- Choices of switch LED colors Red, Green, Blue and Amber.
- No extra wiring required by the installer or customer.
- The upper light still lights up only when the switch is in the on position.
- LED's are much dimmer and less distracting
- LED's draw much less current
- LED's have a much longer life span than incandescent lights.
