Rock Krawler 3.5" X-Factor System
Features:
- Complete Bolt in System
- Excellent Highway Ride and Handling
- Greatly Improved Off-Road Ability
- High Clearance Lower Control Arms Front and Rear
- In Vehicle Adjustable Front Upper Arms
- Long Travel Functional Multi Rate Coil Springs
- PRO Front Sway Bar Disconnects/Extended Links
- PRO Rear Extended Sway Bar Links
- Repositions the Rear Axle Back up to 1" Over Stock
- 35" Tires (OEM Fenders)
- 38" Tires (Flat Fenders)
- Abuse Proof Lifetime Warranty on All Hard Parts
- Upgradeable to any other Rock Krawler System

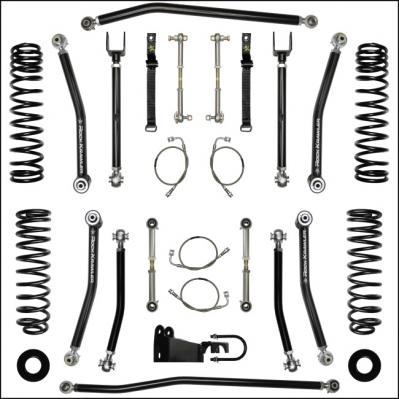

Includes:
- (4) Long travel functional multi rate coil springs
- (2) Double adjustable track bars made from 1.5" solid alloy steel with Anti-Wobble joints
- (4) High clearance adjustable lower control arms made of 1.625" solid alloy steel
- (2) High misalignment double adjustable front upper control arms made from 1.25" solid alloy steel
- (2) High misalignment double adjustable rear upper control arms made from 1.25" solid alloy steel
- (2) Adjustable front sway bar disconnects
- (2) Rear extended sway bar links
- (1) Rear track bar relocation bracket
- (4) Long travel stainless steel brakes
- (1) Pair of sway bar link straps
- (2) Rear coil spring degree wedges
- all Hardware and detailed Instructions
Notes:
- We typically recommend 4.5" of back spacing on rims for 33" and 35" tall tires.
- We typically recommend 3.5" of back spacing on rims for 37" tall tires.
- For 2012 and newer models an aftermarket front driveshaft with 2" O.D. steel tubing is recommended, but not required.
- The X Factor System allows the rear axle to be pushed back up to 1" over stock which perfectly centers the rear axle assembly under typical aftermarket flat fenders. It also allows for larger tires without contacting the rock sliders or rear pinch seam.
