Baja Designs 20" OnX6 LED Light Bar

$692.96
MSRP: $769.95
Your Savings: $76.99 (10%)
SKU: 45-200
Qty:
Beam Pattern:
Eligible for FREE Shipping

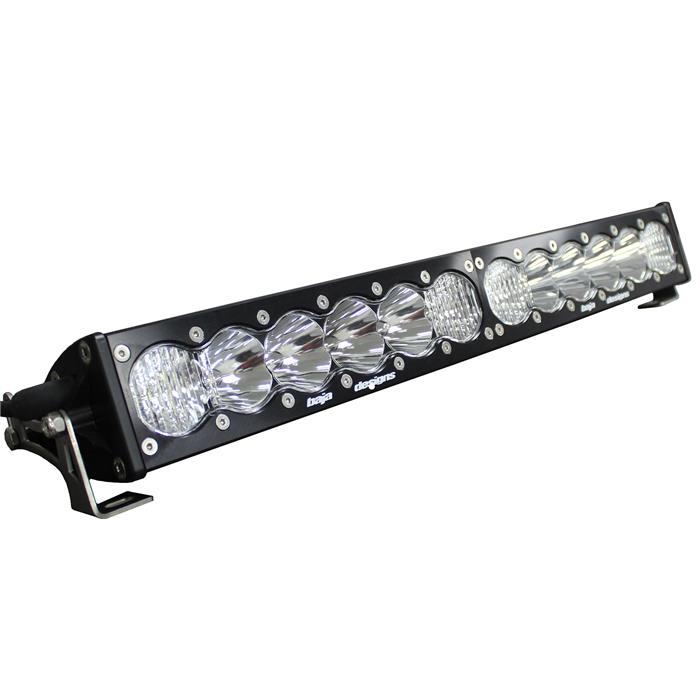

Baja Designs 20" OnX6 LED Light Bar

Baja Designs JK-Gear Free Shipping

At an impressive 6,450 lumens per 10” section, the brightest just got up to 50% brighter. The OnX6™ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.

In addition, the OnX6™ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

The OnX6™ LED Light Bar is BRIGHTER. BOLDER. BETTER.

Features:

  • Satisfaction Guarantee – 30 Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService® – Replaceable Lenses And Optics
  • ClearView® – All The Light, Right Where You Need It.
  • MoistureBlock™ – Waterproof, Rain Proof, Submersible
  • CopperDrive® – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 12,900 Utilizing 12 Cree XM-L2 LEDs
  • Wattage/Amps: 126W / 10.50A
  • Dimensions: 20" x 4.29" x 2.69"
  • Weight: 7.85 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Exceeds MIL-STD810G requirements:

  • Low Temperature Test
  • High Temperature Test
  • Temperature & Humidity Test
  • Thermal Shock Cycling Test
  • Dust Test
  • Random Vibration Test
  • Mechanical Shock Test
  • Low Pressure Test
  • Drip Box Water Test

Includes:

  • OnX6 20” LED Light Bar
  • Mounting Brackets
  • Order wiring harness in related products if needed.

Patterns:

  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
  • Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
  • High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
