sPOD SE System Bluetooth Module
sPOD SE System Bluetooth Module
Easily installs directly onto the SE Source Board.
Requirements
- Devices must be Bluetooth 4.0 compatible
- Android 4.4 KitKat or newer operating system
- iPhone 4s or newer, iPad 2 or newer, iPad mini – iOS 7 or newer
- Existing SE sPOD system
- Access to iTunes App Store or Google Play Store
Smartphone/Device Features:

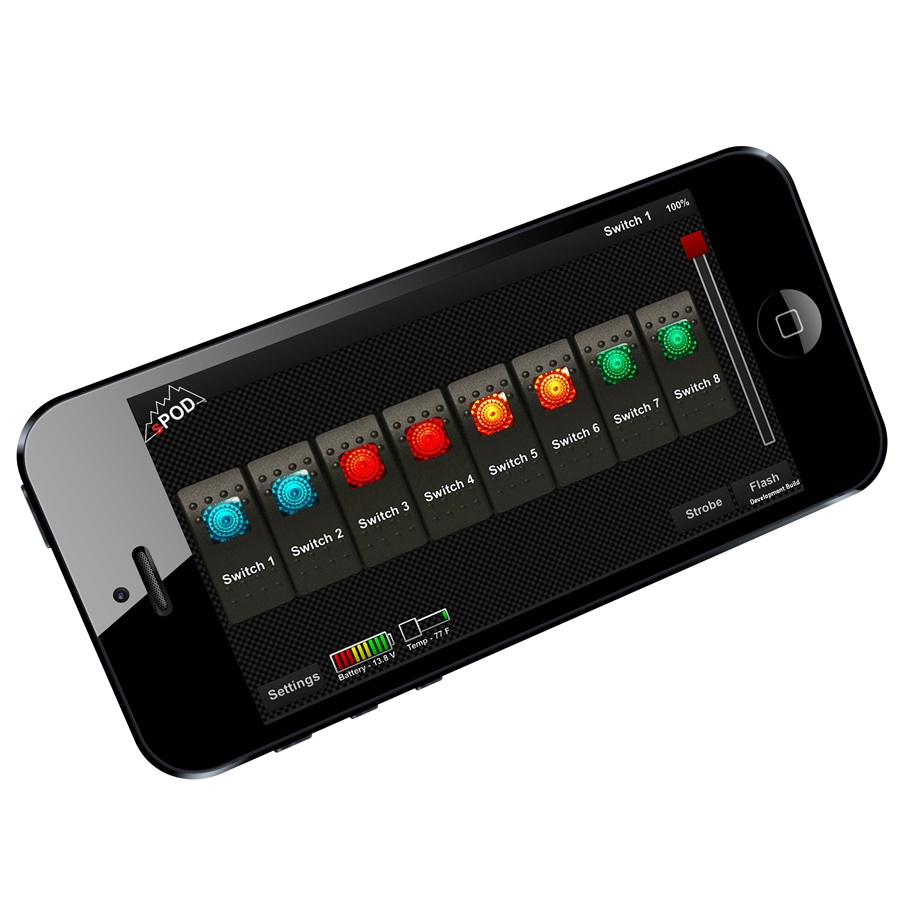

The Bluetooth module is an option that will be an end-user plug-n-play feature. Fully customizable smartphone Bluetooth 4.0 LE wireless controller is interactive with the touchscreen controller. This means that when you turn on a switch via the smart phone, the light on the touchscreen will light up. Vise-versa is true when turning on the circuits.

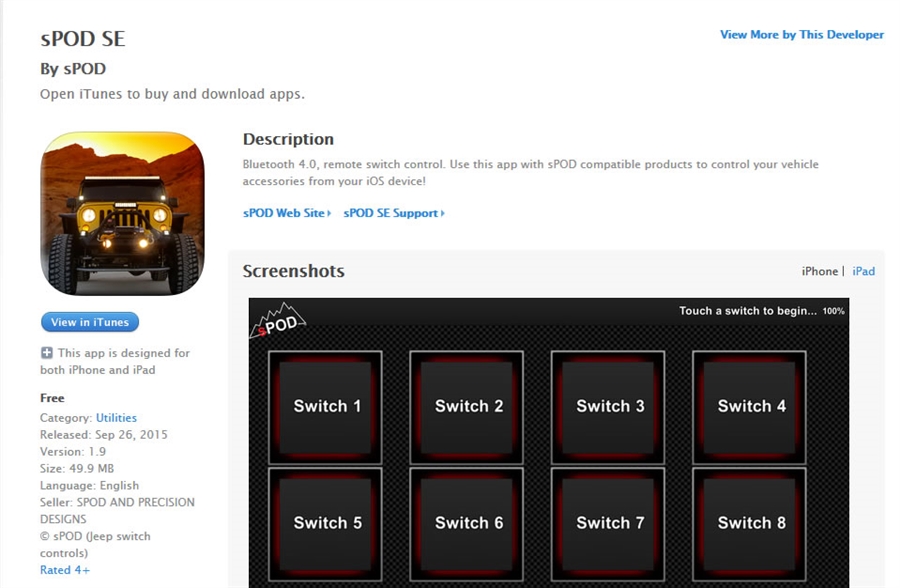

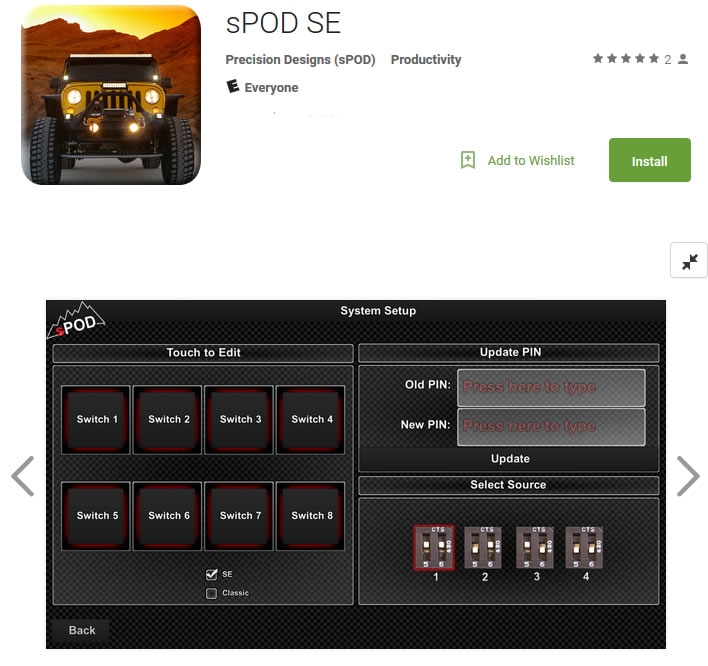

- Free app is downloadable from iTunes or Google Play (Android)
- Auto detect Bluetooth
- Secure PIN enabled password protection
- Customizable legends (3 lines of text)
- Each switch is programmable for:
- Dimming
- Strobe
- Flash
- Momentary
- Selectable colors for each switch: Red, Amber, Green or Blue

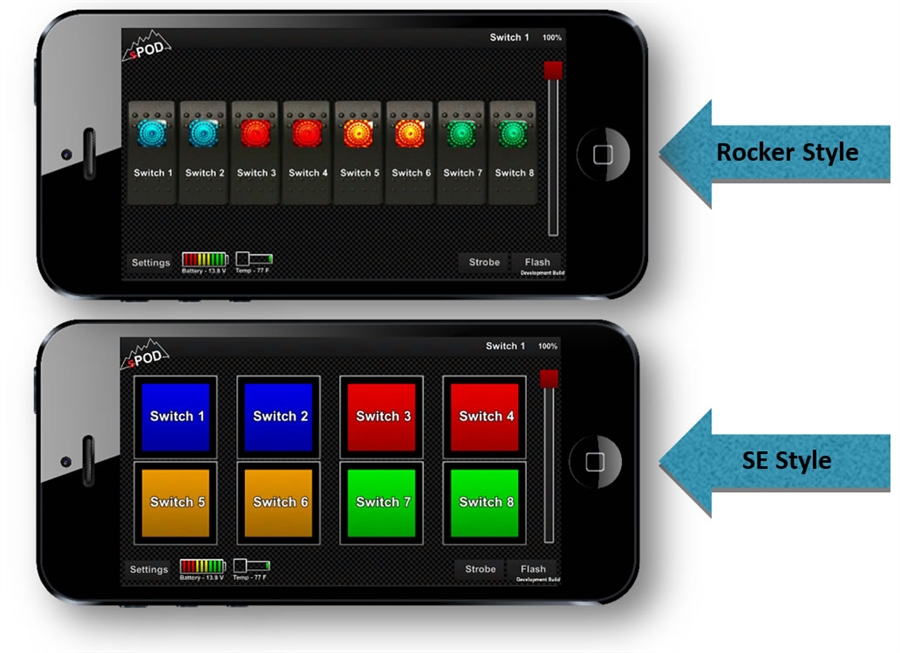

- Standard switches may be displayed as classic sPOD rocker switches or SourceSE style.
- Voltage feedback (vehicle’s battery/alternator voltage)
- SourceSE board temperature feedback (shown on screen)
- Selection of up to 4 sPOD SourceSE to have control of up to 32 circuits.
