Dana Spicer 5-760X U-Joint
Shift into Peak Performance with Spicer Life Series® (SPL®) U-Joints.
Cold-forged from high-quality steel, Spicer Life Series (SPL) universal joints deliver the strength and durability that today’s performance vehicles demand. The synthetic thrust washer eliminates friction and end galling, preventing the heat that breaks down grease, while the multi-lip seal keeps that grease in—and contaminants out. It all adds up to all-out protection and a longer life for your driveshaft, and it’s why Spicer Life Series (SPL) is the brand people trust.
Engineered for Reduced Wear and Longer Service Life.
You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. Spicer Life Series u-joints consistently outperform competitors, so you can hit the road or trail with confidence. Check out the difference that SPL u-joints can make in your vehicle, and make sure you’re getting the longer life, increased bearing capacity and lower maintenance costs that Spicer Life Series (SPL) can provide.
Application:
- 2007-2016 Jeep Wrangler JK Non-Rubicon (Dana 30 Front Axle)
Specifications:
- Greasable: N
- Retention Method: Inside Snap Ring
- Outside/Inside Snap Rings: ISR

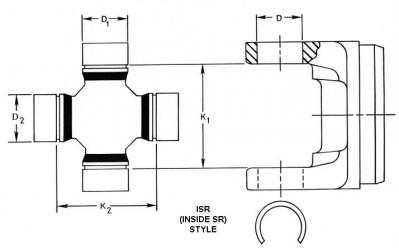

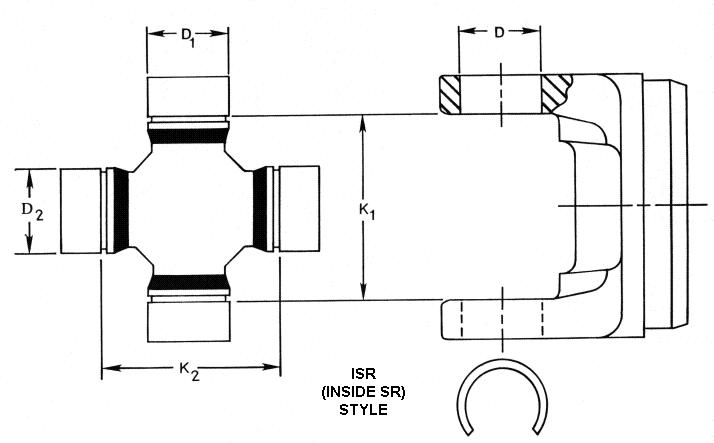

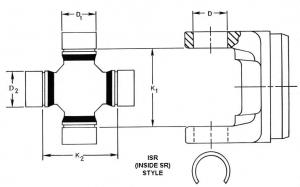

- K1 Snap Ring Dim. (Between rings) (ISR): 2.188
- K2 Snap Ring Dim. (Between rings) (ISR): 2.188
- Inside Snap Ring Style - Outside of groove 1 dim. (In.): 2.188
- Inside Snap Ring Style - Outside of groove 2 dim. (In.): 2.188
- U-Joint Series: 1310 WJ
- Inside Snap Ring Style Bearing Cap Diameter 1 (In.): 1.188
- Inside Snap Ring Style Bearing Cap Diameter 2 (In.): 1.188
- D1 Bearing Cap Dia. (ISR): 1.188
- D2 Bearing Cap Dia. (ISR): 1.188
- Position: Various: Application Specific
- Body TypeVarious: Application Specific
- Manufacturer's Part Number: 5-760X
